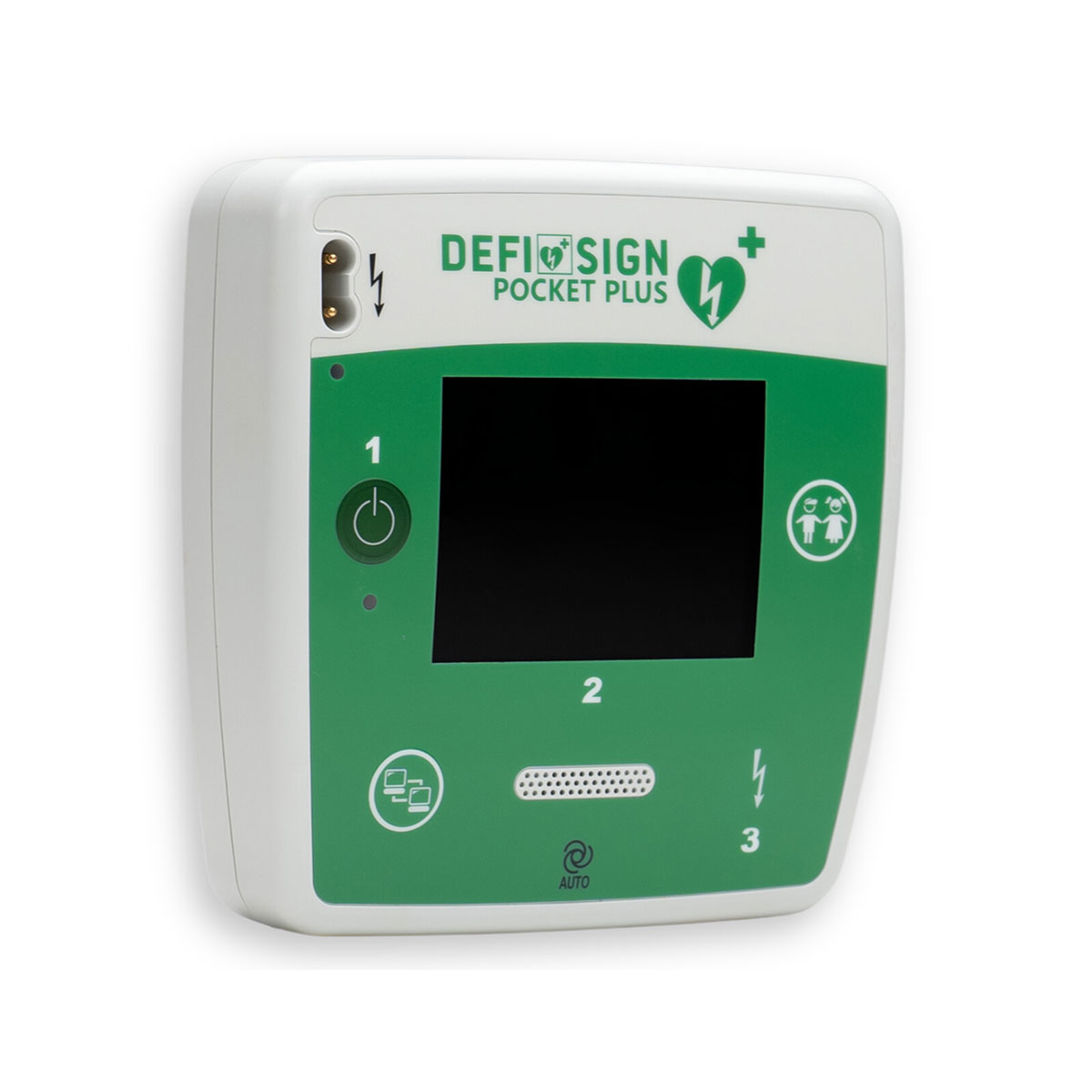

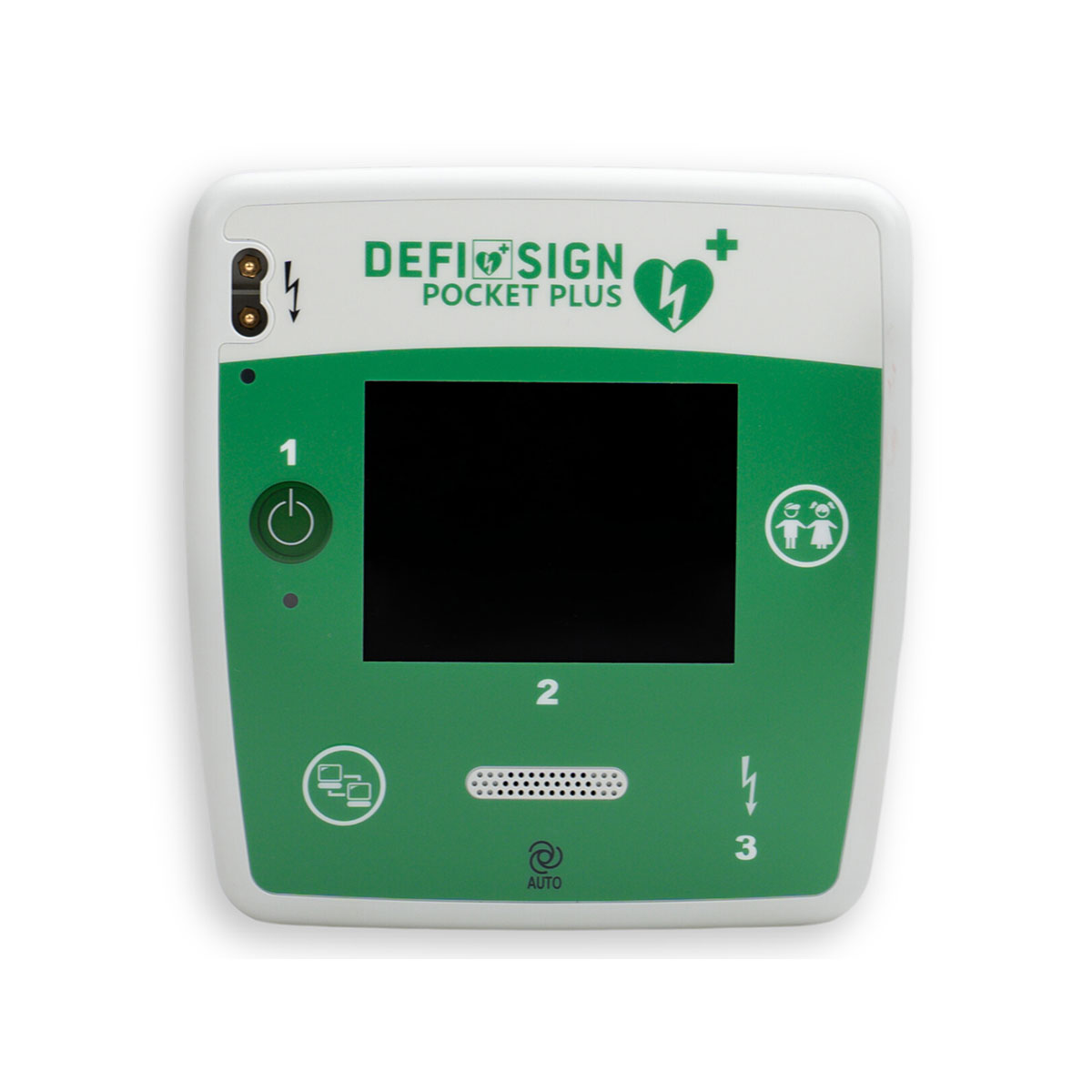

Defisign Pocket Plus Fully Automatic Defibrillator (AED)

Suitable for novices and professionals

The Defisign Pocket Plus defibrillator caters to all skill levels and is designed to be compact, lightweight making it highly portable and suitable for activities where an defibrillator may not be readily available, such as hiking, cycling, or sailing. Inexperienced users particularly appreciate its user-friendly design.

Fully-automatic defibrillator

The unit recognises when a shock is needed and delivers what is required without manual input.

Clear instructions and LCD Screen

The LCD screen of the defibrillator has an automatic light adjustment feature, ensuring optimal visibility in any environment. This screen displays clear visual instructions to guide users through the resuscitation process. During CPR, the defibrillator offers further support in various ways, including:
• Audio support: Step-by-step instructions are provided audibly.
• Visual support: The LCD display shows relevant images to guide users.
• Metronome: A built-in metronome helps maintain the proper pace for chest compressions.

Always ready for use

The device performs a daily or weekly self-tests to check battery and pads for readiness. The AED automatically alerts you when the electrodes or battery need to be replaced. If a problem is detected during the test, an audible alarm is emitted, the LED status light stops blinking and a Service LED light turns on.

Pads & Batteries

Adult/Child defibrillation pads are pre-connected to save valuable seconds in an emergency.
Includes two batteries. Additionally, the defibrillator has an internal battery that needs to be replaced approximately every six years. The shelf life of the external batteries varies depending on the frequency of self-tests:
• If self-tests are conducted weekly, the external batteries have a shelf life of one year and six months.
• If self-tests are performed monthly, the external batteries have a shelf life of two years and six months

Child mode

The defibrillator is equipped with a child button that, when pressed, automatically activates child mode, eliminating the need for additional child electrodes.

Self-test

The AED performs regular self-tests to ensure correct operation. The status is indicated by a flashing on/off button.

• 1x DefiSign Pocket Plus Defibrillator Fully Automatic
• 1x DefiSign Pocket Plus Bag
• 2x Batteries
• 1x Electrodes (preconnected)
• 1x User manual

Dimensions:  15 x 14.3 x 4.6 cm

Weight: 870g with battery and electrodes

Dust / water resistance: IP 44

Drop tolerance: 1.22m drop to any edge, corner or surface

Energy selection (Adult): Up to 200j

Energy selection (child): 50 Joules

Infant / child capability: Dual pads and press of a button
